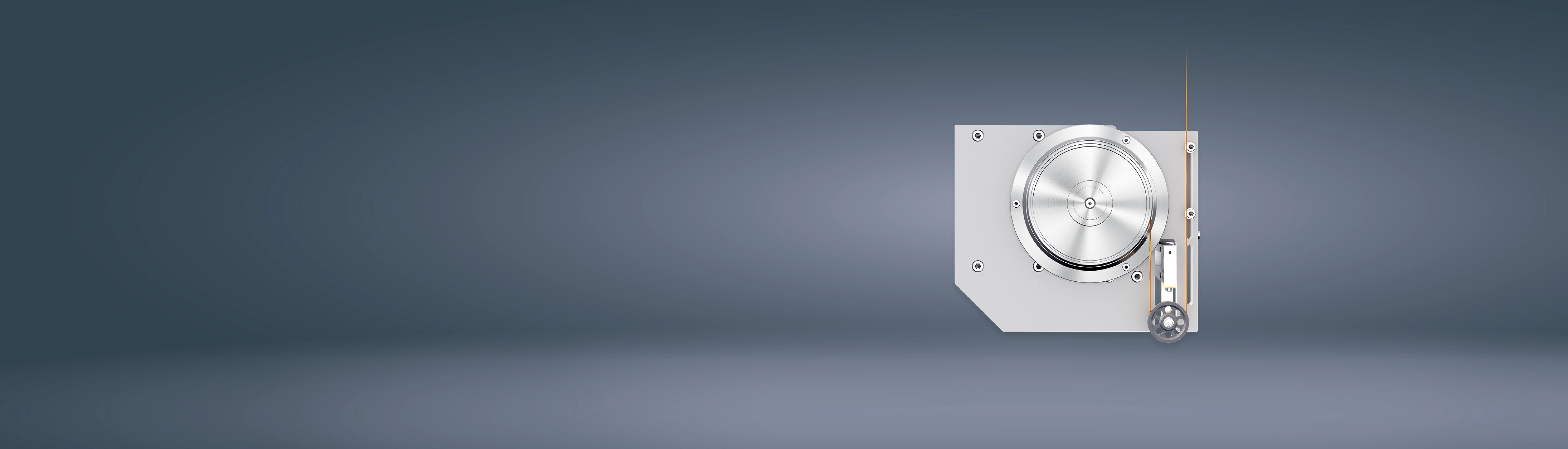

HAUL-OFF

The HAUL-OFF system is used to measure the elongation capacity of melts under constant haul-off speed or under linear or exponential acceleration of the haul-off strand.

Product brochure


Elongation-Testing HAUL-OFF

Measurement at high pull-off speed

The HAUL-OFF system is used to measure the elongation capacity of melts under constant haul-off speed or under linear or exponential acceleration of the haul-off strand. The pull-off force required to stretch the melt strand is measured and used to calculate the apparent elongation rate as well as the elongation viscosity, the elongation ratio and the elongation stress.


Specification

Product features

  • Infinitely adjustable pull-off speed from 0–2000 m/min
  • Freely selectable linear or exponential acceleration
  • Non-stick coated surface of the pull-off wheels
  • Measuring range of up to 1 N, resolution 0.05 mN
  • Software for settings, measurement control and evaluation
